BLOCK TRANSFER OUTOUT

WRITE THIS IN THE WRITING SIDE OF THE JOURNAL

ADDRESS	OPCODE	LABEL	MNEMONICS	COMMENT
4000	06 0F		MVI B,10	;set counter to B
4002	21 5F 40		LXI H,4059H	;set memory pointer HL
4005	11 60 40		LXI D,4060H	;set second memory pointer DE
4008	7E	CONT:	MOV A,M	;move data from mem. To Acc.
4009	12		STAX D	;store it at memory add. of DE
400A	13		INX D	;increment DE address
400B	2B		DCX H	;decrement HL address
400C	05		DCR B	;decrement counter B
400D	C2 08 40		JNZ CONT	;jump if not finished to CONT
4010	76		hlt	;;Entering 8085 in the HALT state

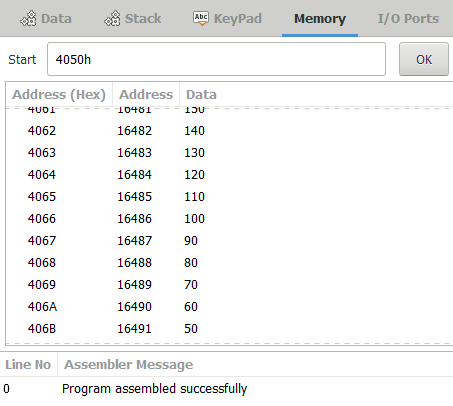

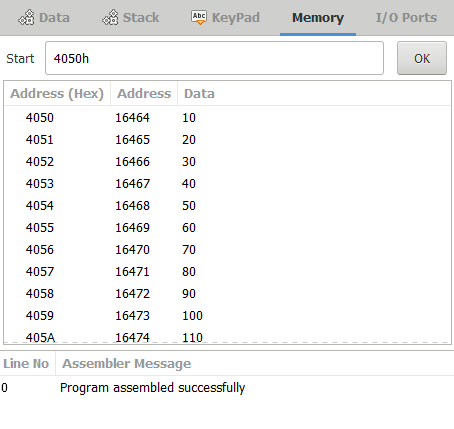

Stick this printout on the left side (i.e in the blank side)

) Sign Flag is reset: Result is positive
) Zero flag is set: result is set to zero after the execution of arithmetic or logical operation
) auxiliary carry flag is set: there is a carry from bit D3 to D4
) parity flag is set: result stored in accumulator contain even number of 1’s
) carry flag is result: no carry or borrow bit during the execution of arithmetic operation

WRITE THIS IN THE BLANK SIDE OF THE JOURNAL
